Install Stats.d / Graphite on a debian server in order to monitor a Symfony2 application (1/2)

Install Stats.d / Graphite on a debian server in order to monitor a Symfony2 application.

  1. Installing graphite dependencies
  2. Configuring graphite
  3. Enabling graphite host
  4. Edit local.js and make it looks like:

During this tutorial, we will install Stats.d and Graphite on the same server our application is running on. Don't forget that it's best if you monitor your application with graphite & stats.d using another server because that will not be the case in this tutorial.

Requirements :

  • A Linux based server (this tutorial will explain the steps for Debian)
  • A running Symfony2 application
  • StatsDClientBundle

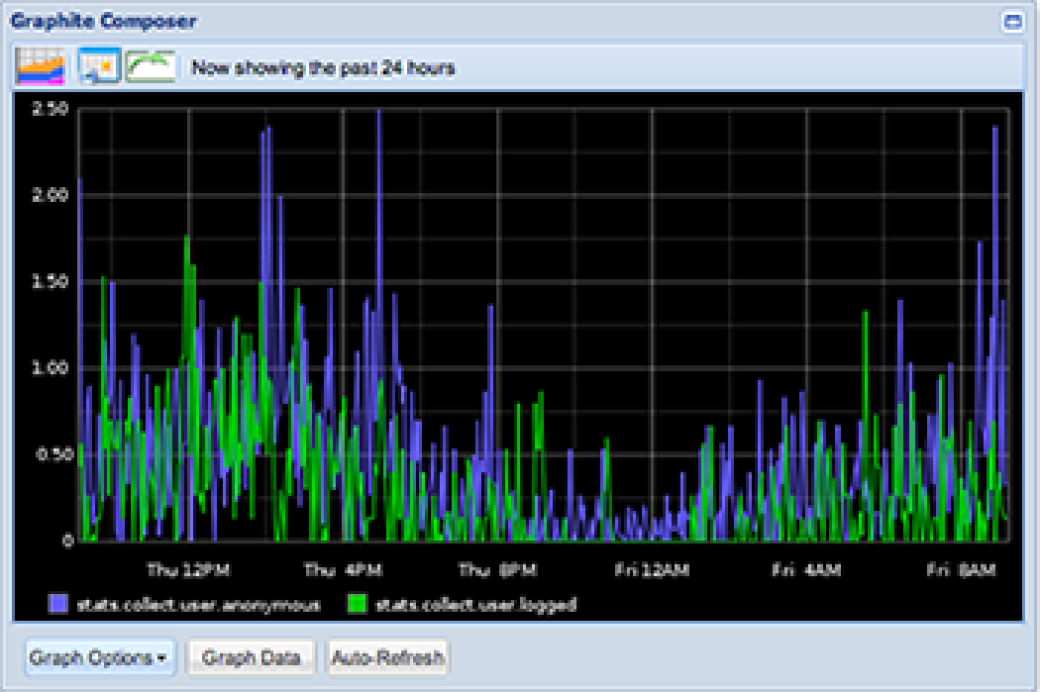

Here's the result we'll have at the end (screenshot from a personal web application) :

graphite graphite graphite

Install Graphite

Installing graphite dependencies

apt-get install -y python2.6 python-pip python-cairo python-django python-django-tagging
apt-get install -y libapache2-mod-wsgi python-twisted python-memcache python-pysqlite2 python-simplejson
pip install whisper
pip install carbon
pip install graphite-web

# Setup a vhost by grabbing the example the graphite team released on their repo.
# In this file, you'll provide the url used to access to your Graphite dashboard
wget -O /etc/apache2/sites-available/graphite
# If you are running on a Debian, don't forget to replace in the vhost, the WSGISocketPrefix value by the following:
WSGISocketPrefix /var/run/apache2/wsgi

Configuring graphite

cd /opt/graphite/conf/
cp graphite.wsgi.example graphite.wsgi
cp carbon.conf.example carbon.conf
cp storage-schemas.conf.example storage-schemas.conf
# Edit storage-schemas.conf in order to include a custom tweak provided by stats.d
pattern = ^stats.*
retentions = 10:2160,60:10080,600:262974

pattern = ^carbon\.
retentions = 60:90d

pattern = .*
retentions = 60s:1d
# Create a vi storage-aggregation.conf
vi storage-aggregation.conf
# Then copy paste in it the following parameters
pattern = \.min$
xFilesFactor = 0.1
aggregationMethod = min

pattern = \.max$
xFilesFactor = 0.1
aggregationMethod = max

pattern = \.count$
xFilesFactor = 0
aggregationMethod = sum

pattern = .*
xFilesFactor = 0.3
aggregationMethod = average

Let's go back to the installation process

cd /opt/graphite/webapp/graphite
python syncdb
chown -R www-data:www-data /opt/graphite/storage/

Enabling graphite host

a2ensite graphite
/opt/graphite/bin/ start
/etc/init.d/apache2 resta

If you want the full detail on the graphite, take a look at the source I used for the installations steps.


sudo apt-get update && apt-get install git-core curl build-essential openssl libssl-dev

# Don't forget to go to the location you want to install node in (like cd /home/) before running these commands
git clone
cd node
git checkout v0.8.12

./configure --openssl-libpath=/usr/lib/ssl
make test
sudo make install
node -v
npm -v

cd ..
git clone
cd statsd
cp exampleConfig.js local.js

Edit local.js and make it looks like:

graphitePort: 2003
, graphiteHost: "localhost"
, port: 8125

Then you need to run stats.d

apt-get install screen
screen node stats.js local.js

# Then press Ctrl + a + d in order to let run stats.js in background mode thanks to screen.

If you want the full detail, check out the source.

Graphite and Stat.d client.From now on, we have a running copy of both

You can access it with the URL you provided in your vhost

Now, let's install the StatsDClientBundle in order to monitor our Symfony2 application

// composer.json
"require": {
    # ..
    "liuggio/statsd-client-bundle": ">=1.2",
    # ..
// After running php composer.phar update liuggio/statsd-client-bundle
// Enable the Bundle in AppKernel.php
class AppKernel extends Kernel
     public function registerBundles()
         $bundles = array(
         // ...
            new Liuggio\StatsDClientBundle\LiuggioStatsDClientBundle(),
         // ...

// Then add the full configuration for the Bundle in app/config/config.yml
    host: localhost
    port: 8125
    fail_silently: true
  enable_collector: true #default is false
    liuggio_stats_d_client.collector.dbal: 'collect.query'
    liuggio_stats_d_client.collector.visitor: 'collect.visitor'
    liuggio_stats_d_client.collector.memory: 'collect.memory'
    liuggio_stats_d_client.collector.user: 'collect.user'
    liuggio_stats_d_client.collector.exception: 'collect.exception'

Note that we added the full configuration for the bundle which allow us to collect these usefull information such as logged users vs anonymous, memory usage.

In the 2nd part, we'll see how to monitor custom events in your Symfony2 app.
